Product Details
＋

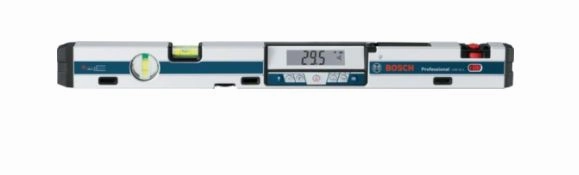

Bosch GIM 60 L Professional Digital Inclinometer | Model : B-GIM60L
Features :
- Integrated point laser for incline measurement up to a distance of 30 m
- Strong magnets and two straps for securely fastening the instrument to workpieces
- Incline mechanism for fine adjustment on uneven surfaces
Specifications :
| Additional data | |
|---|---|
| Length | 60 cm |
| Measurement range | 0 – 360° (4 x 90°) |
| Electronics measurement accuracy 0°/90° | ± 0.05° |
| Electronics measuring accuracy at 1– 89° | ± 0.1° |
| Working range (laser) | 30 m |
| Weight approx. | 0.91 kg |
| Laser type | 635 nm, < 1 mW |
| Laser range | 30 m |
| Laser class | 2 |
| Levelling accuracy of laser | ± 0,5 mm/m |
| Units of measurement | °, %, mm/m |
| Tripod thread | 1/4" |
Accessories included :
with 4 x battery (AAA), Protective Bag
- Protective Bag
- 4 x 1.5 V LR03 battery (AAA)
